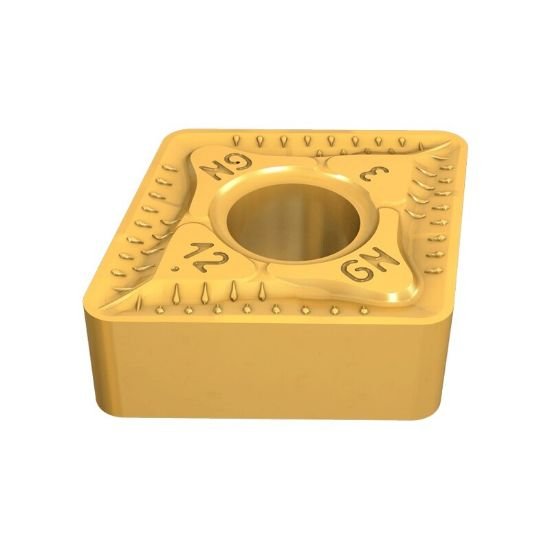

Picture of CNMG431-GN IC428 Iscar CNMG120404-GN IC428 80.0° Negative Carbide 0.0160 0.41mm Radius Finishing

CNMG431-GN IC428 Iscar CNMG120404-GN IC428 80.0° Negative Carbide 0.0160 0.41mm Radius Finishing

Part Number: ISC5507548 ISO: CNMG120404-GN IC428 ANSI:CNMG431-GN IC428

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1050943
Vendor: Sussex Tool and Supply
$9.03
This product has a minimum quantity of 10
ISCAR CNMG120404-GN IC428 Negative 80.0 ° Insert Finishing A hard substrate with multilayer CVD coating. Recommended for machining gray and nodular cast iron at moderate to high cutting speeds.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Gray Iron, <53HRC Steel
Coating TIC + Al2O3
Insert/Tool INSERT
Cut Type Finishing
Corner Radius 0.0160 0.41MM
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Grade IC428
Insert Type Negative
Insert Size Ic 12 "43"
Insert Fits 80.0°
