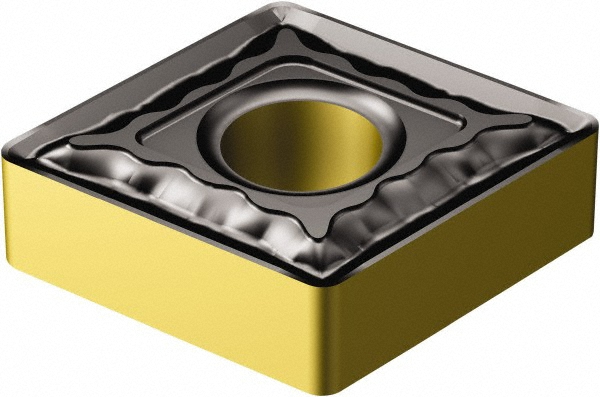

Picture of CNMG 643QM 4335 Sandvik 7080902

CNMG 643QM 4335 Sandvik 7080902

Part Number: SAN7080902

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1355864
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 643 Insert, Rhombic, 0.315 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, QM Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 4335, ANSI Code: CNMG 643-QM 4335, ISO Code: CNMG 19 06 12-QM 4335, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
Products specifications
Attribute name Attribute value
Cutter Type Insert
Insert Style CN
Insert Size Ic 19 "64"
Insert Fits 80.0°
