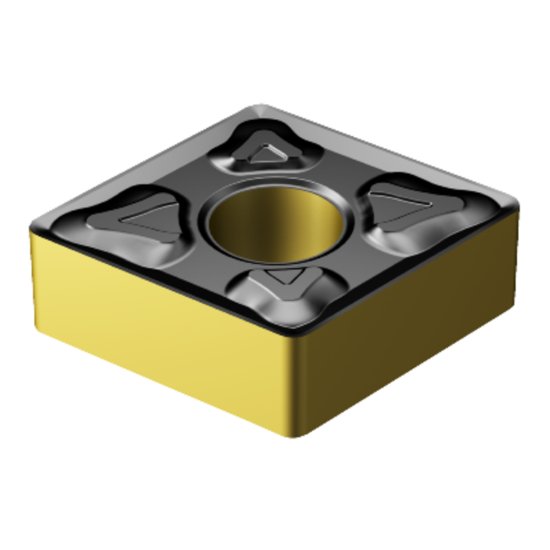

Picture of CNMG 433-XM 2220 Sandvik CNMG120412 XM 2220 80.0° Negative Carbide 0.0470 1.19mm Radius Medium, Semi Finishing

CNMG 433-XM 2220 Sandvik CNMG120412 XM 2220 80.0° Negative Carbide 0.0470 1.19mm Radius Medium, Semi Finishing

Part Number: SAN7231336 ISO: CNMG120412 XM 2220 ANSI:CNMG 433-XM 2220

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1059946
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SANDVIK CNMG120412 XM 2220 Negative 80.0 ° Insert Medium, Semi Finishing CVD TiCN+Al2O3+TiN CVD-coated gradient sintered carbide with Inveio coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Cut Type Medium, Semi Finishing
Corner Radius 0.0470 1.19MM
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Grade 2220
Insert Type Negative
Insert Size Ic 12 "43"
Insert Fits 80.0°
Hand Neutral
