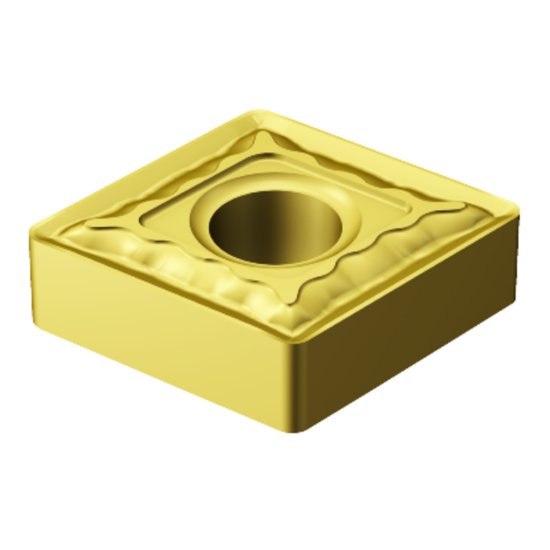

Picture of CNMG 432-QM S05F Sandvik CNMG120408 QM S05F 80.0° Negative Carbide 0.0320 0.81mm Radius Medium, Semi Finishing

CNMG 432-QM S05F Sandvik CNMG120408 QM S05F 80.0° Negative Carbide 0.0320 0.81mm Radius Medium, Semi Finishing

Part Number: SAN5724766 ISO: CNMG120408 QM S05F ANSI:CNMG 432-QM S05F
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SKU: 1059509

Description

SANDVIK CNMG120408 QM S05F Negative 80.0 ° Insert Medium, Semi Finishing CVD-coated grade for high speed finishing or long cuts at lower speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Medium, Semi Finishing
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Neutral
Dimensions & Sizing
Insert Size Ic 12 "43"
Geometry & Angles
Corner Radius 0.0320 0.81MM
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + AI2O3 + TiN
Grade S05F
Compatibility & Fit
Insert Fits 80.0°
