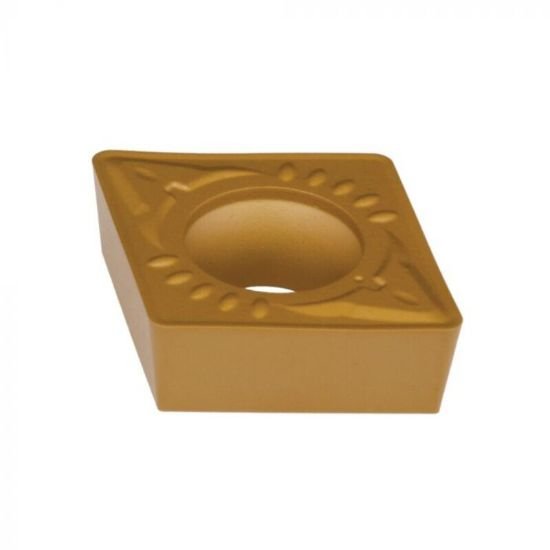

Picture of CCMT32.51-PEM-DPC15HT Dorian CCMT09T304-PEM-DPC15HT 80.0° Positive Carbide 0.0150 0.38mm Radius Finishing, Semi Finishing

CCMT32.51-PEM-DPC15HT Dorian CCMT09T304-PEM-DPC15HT 80.0° Positive Carbide 0.0150 0.38mm Radius Finishing, Semi Finishing

Part Number: DOR71935 ISO: CCMT09T304-PEM-DPC15HT ANSI:CCMT32.51-PEM-DPC15HT
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038710
Vendor: Sussex Tool and Supply
$8.53
This product has a minimum quantity of 10

Description

DORIAN CCMT09T304-PEM-DPC15HT 80.0 ° Positive Insert For finishing turning applications at a high SFM. Use inserts to cut Steel and Stainless Steel. Inserts have hard wear and abrasive resistance substrate with a CVD Al2O3/TiCl2O3/TiCNcoating. Not for interrupted cuts.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Neutral
Dimensions & Sizing
Insert Size Ic 09 "32"
Geometry & Angles
Corner Radius 0.0150 0.38MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating Al2O3 + TiCN + Al2O3 + TiCN
Grade DPC15HT
Compatibility & Fit
Insert Fits 80.0°
