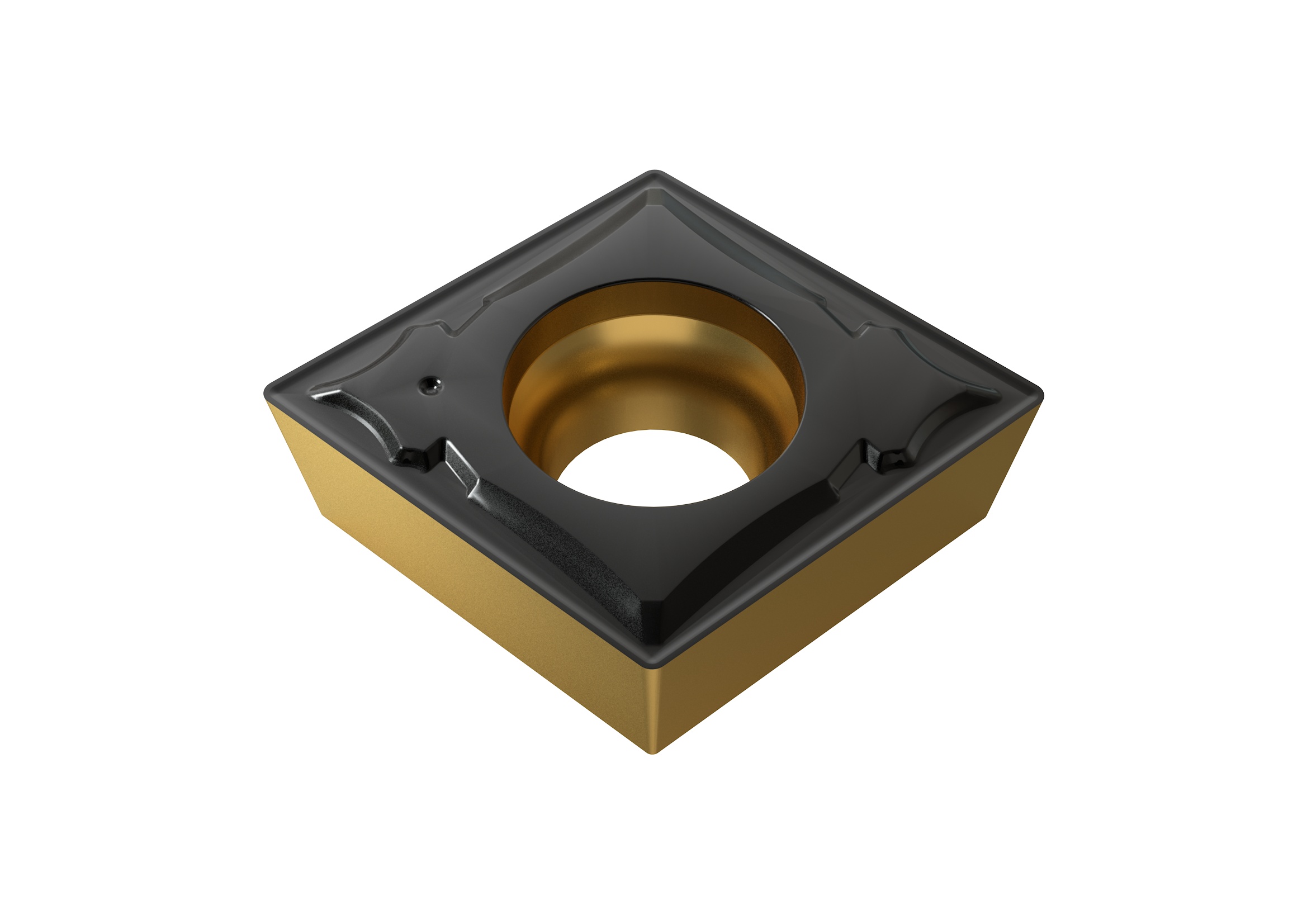

Picture of CCMT31UG YG3010 YG-1 CCMT0404-UG YG3010 80.0° Positive Carbide 0.0156 0.40mm Radius Finishing, Semi Finishing

CCMT31UG YG3010 YG-1 CCMT0404-UG YG3010 80.0° Positive Carbide 0.0156 0.40mm Radius Finishing, Semi Finishing

Part Number: YGG22000175 ISO: CCMT120404-UG YG3010 ANSI:CCMT431UG YG3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1076542
Vendor: Sussex Tool and Supply
$11.65
This product has a minimum quantity of 10
YG-1 CCMT120404-UG YG3010 Positive 80.0 ° Insert Finishing, Semi Finishing Carbide Insert Cvd-Ticn+Al2o3 Coated For Interrupted & Roughing Steel & Cast Iron Ur Chip Breaker For Heavy Roughing And Interrupted Turning Applications. Yg3010 Is A Cvd-Ticn+Al2o3 Gold & Black Coated Grade For Steel Finishing And Grey Cast Iron Turning. Sub-Micron Grain Carbide For High Wear Resistance With A Special Surface Treatment On The Top Face Of The Insert For Higher Cutting Speeds, Smoother Chip Flow And Longer Insert Life. 1St Choice Grade For Light Continuous Machining Of Non-Alloyed Steels, Low Carbon Steels, Medium Carbon Steels And Ductile Cast Iron.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TiCN + Al2O3
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Corner Radius 0.0156 0.40MM
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Grade YG3010
Insert Type Positive
Insert Size Ic 12 "43"
Insert Fits 80.0°
