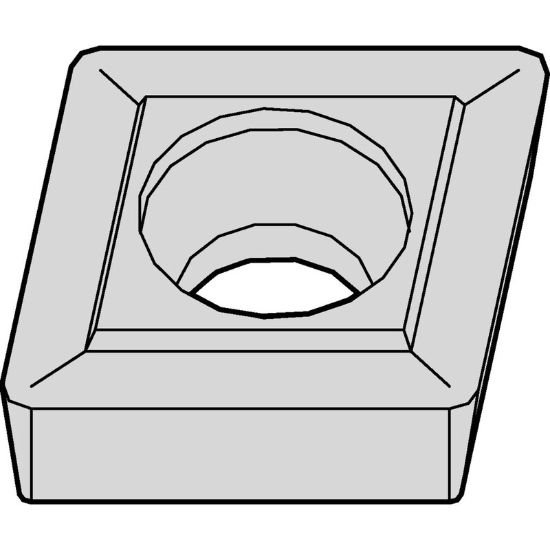

Picture of CCMT251 TN4000 Widia/Kennametal CCMT09T304 TN4000 80.0° Positive Carbide 0.0160 0.41mm Radius Finishing, Semi Finishing

CCMT251 TN4000 Widia/Kennametal CCMT09T304 TN4000 80.0° Positive Carbide 0.0160 0.41mm Radius Finishing, Semi Finishing

Part Number: WID2562379 ISO: CCMT09T304 TN4000 ANSI:CCMT3251 TN4000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$12.63
This product has a minimum quantity of 10
SKU: 1073943

Description

WIDIA CCMT09T304 TN4000 Positive 80.0 ° Insert Finishing, Semi Finishing CVD, good for steel and stainless steel light interupted
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 09 "32"
Geometry & Angles
Corner Radius 0.0160 0.41MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiN + TiCN + Al2O3
Grade TN4000
Compatibility & Fit
Insert Fits 80.0°
