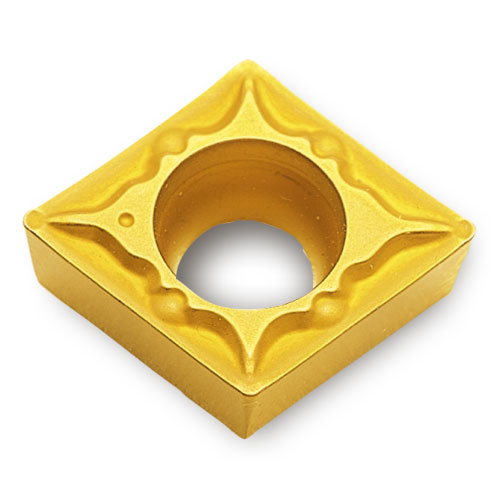

Picture of CCMT21.51FG TT7015 Ingersoll CCMT060204FG TT7015 80.0° Positive Carbide 0.0160 0.41mm Radius Finishing

CCMT21.51FG TT7015 Ingersoll CCMT060204FG TT7015 80.0° Positive Carbide 0.0160 0.41mm Radius Finishing

Part Number: ING6115980 ISO: CCMT060204FG TT7015 ANSI:CCMT21.51FG TT7015
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1046785
Vendor: Sussex Tool and Supply
$8.93
This product has a minimum quantity of 10

Description

INGERSOLL CCMT060204FG TT7015 Positive 80.0 ° Insert Finishing Wear resistant CVD coated grade for general machining of gray and ductile cast irons in continuous and interrupted conditions
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 06 "21"
Geometry & Angles
Corner Radius 0.0160 0.41MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3
Grade TT7015
Compatibility & Fit
Insert Fits 80.0°
