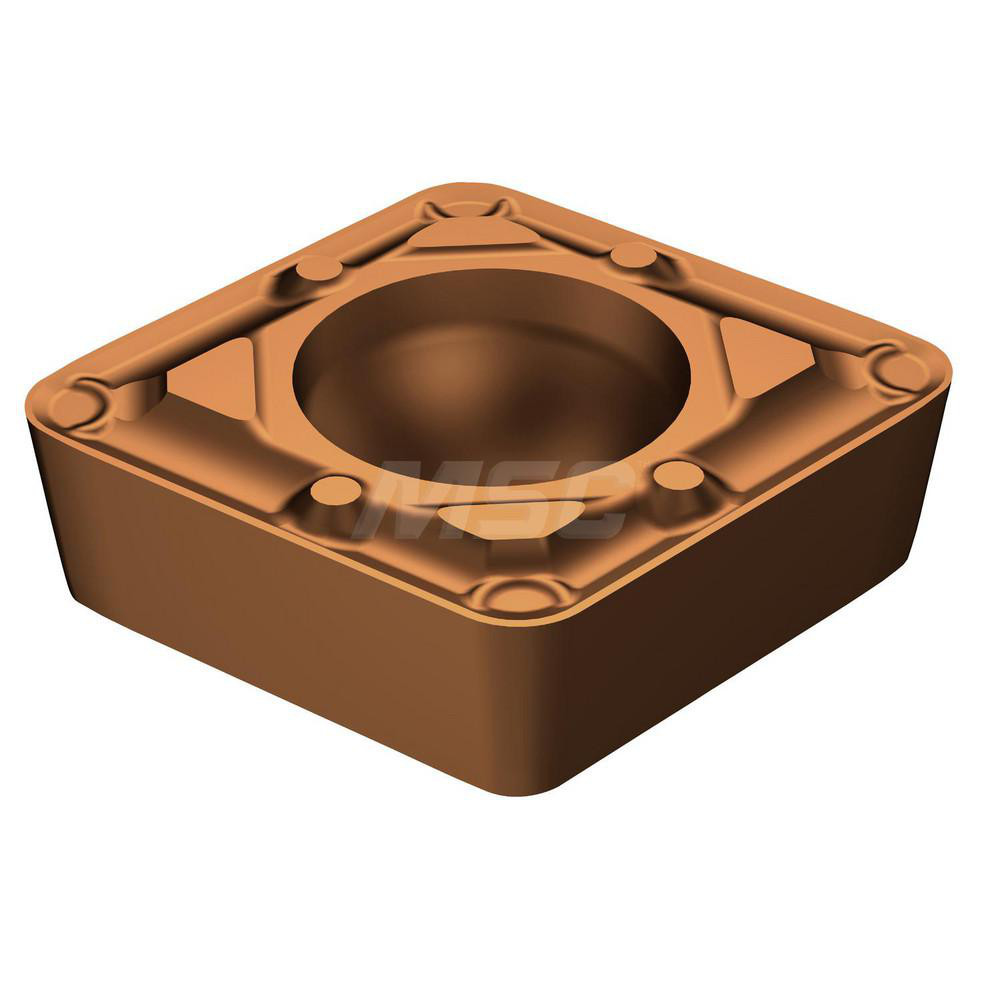

Picture of CCMT 32.51WF 1125 Sandvik 5723830

CCMT 32.51WF 1125 Sandvik 5723830

Part Number: SAN5723830

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1353285
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)1 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, WF Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1125, ANSI Code: CCMT 3(2.5)1-WF 1125, ISO Code: CCMT 09 T3 04-WF 1125, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, N, S, For Use On: Stainless Steel, Non-Ferrous Materials and Heat Resistant Super Alloys and Titanium
Products specifications
Attribute name Attribute value
Cutter Type Insert
Insert Style CC
Insert Size Ic 09 "32"
Insert Fits 80.0°
