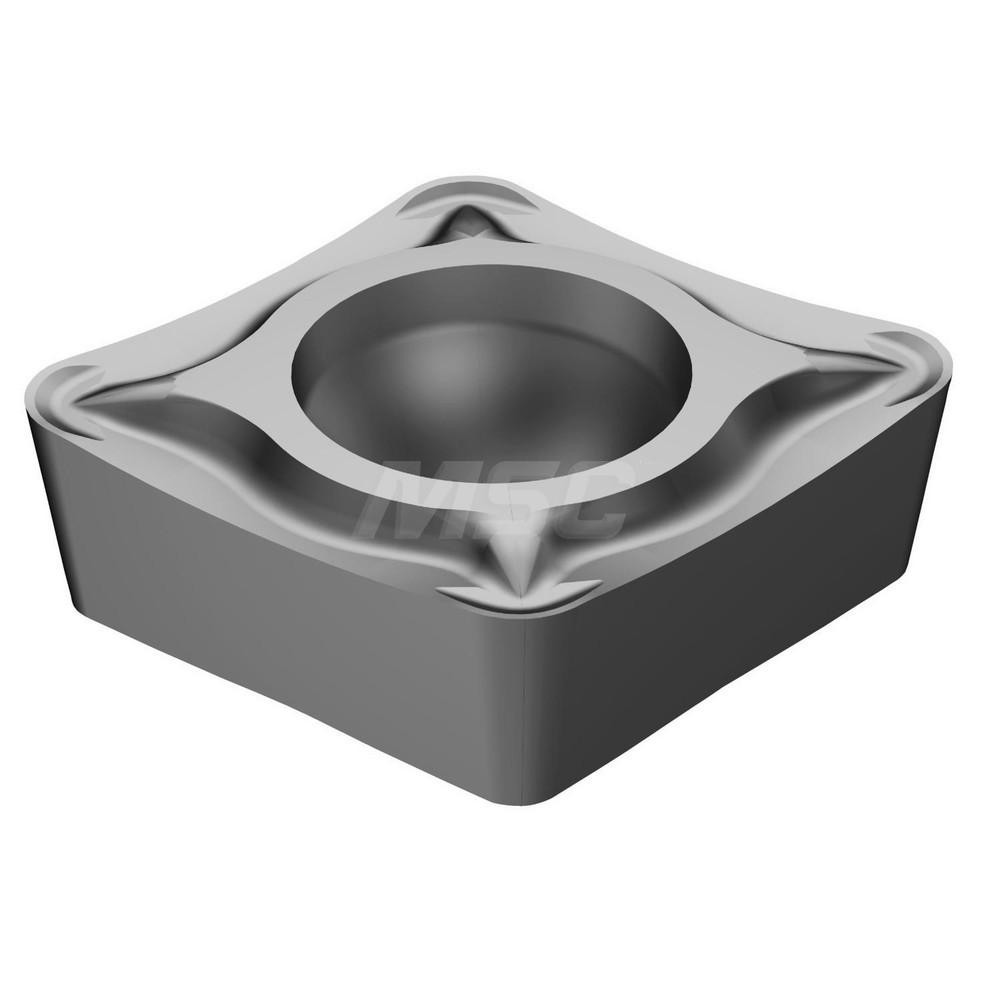

Picture of CCMT 21.51UM 5015 Sandvik CCMT 21.51UM 5015

CCMT 21.51UM 5015 Sandvik CCMT 21.51UM 5015

Part Number: SANCCMT 21.51UM 5015
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1353973
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 2(1.5)1 Insert, Diamond, 2.5 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 06 Seat, Positive Rake, UM Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 5015, ANSI Code: CCMT 2(1.5)1-UM 5015, ISO Code: CCMT 06 02 04-UM 5015, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: K, P, For Use On: Cast Iron and Steel
Products specifications
Attribute name Attribute value
General Information
Cutter Type Insert
Insert Style CC
Dimensions & Sizing
Insert Size Ic 06 "21"
Compatibility & Fit
Insert Fits 80.0°
