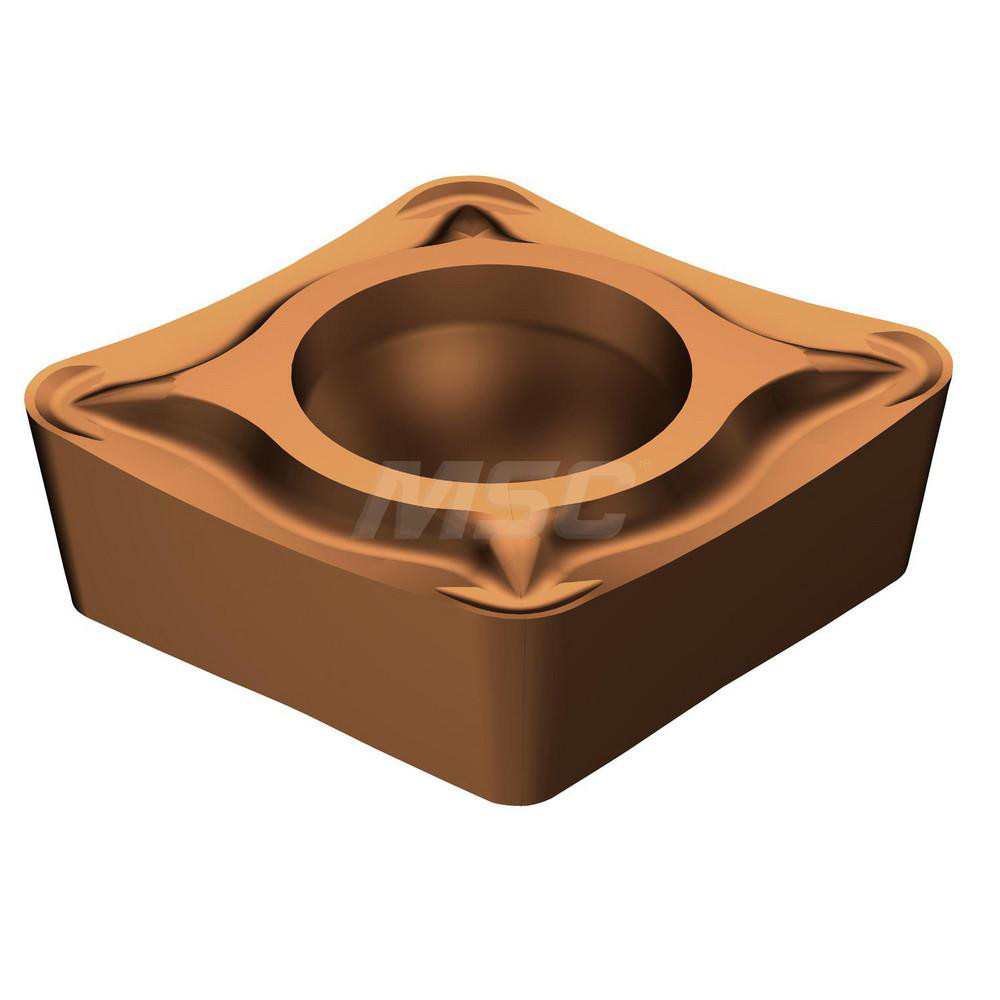

Picture of CCMT 09T308UM 1115 Sandvik Insert Sandvik 5723695

CCMT 09T308UM 1115 Sandvik Insert Sandvik 5723695

Part Number: SAN5723695

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1353284
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)2 Insert, Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, UM Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: CCMT 3(2.5)2-UM 1115, ISO Code: CCMT 09 T3 08-UM 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel, Heat-Resistant Super Alloys and Titanium
Products specifications
Attribute name Attribute value
Cutter Type Insert
Insert Style CC
Insert Size Ic 09 "32"
Insert Fits 80.0°
