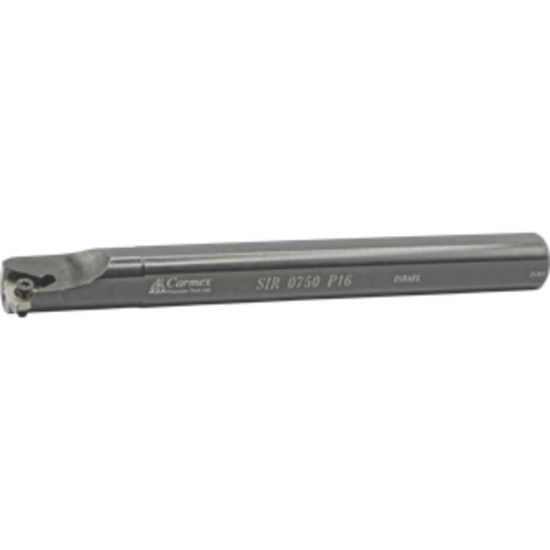

Picture of CARMEX SIR 0750 P16 Boring Bar 0.75 Boring Bar Right Hand 7.00 OAL Iso Thread 16 Size Triangle

CARMEX SIR 0750 P16 Boring Bar 0.75 Boring Bar Right Hand 7.00 OAL Iso Thread 16 Size Triangle

ANSI: SIR 0750 P16

ISO: SIR 0750 P16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: CAR30100175
Delivery date: 3-5 days
$101.40
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Int.Groove Threading, Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Neck Dia 0.7500
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 7.0000 177.80MM
Machine Side Connection Size 0.7500 19.05MM
Min Bore 0.9000
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Insert Style ISO
Hand R/L Right
Seat/Nest AE16
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw S16
Seat Screw A16
