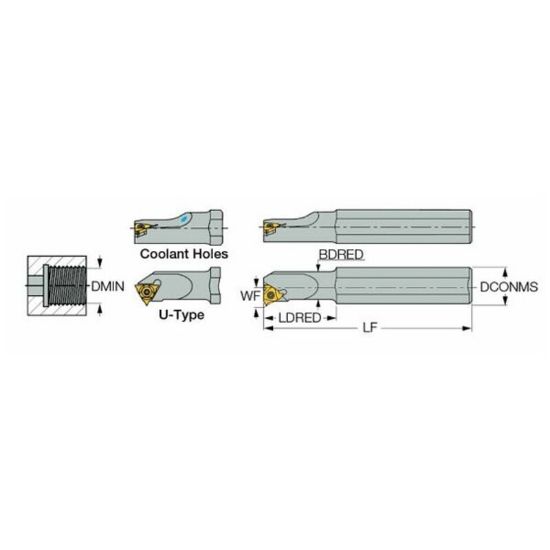

Picture of CARMEX SIL 2000 U33 Threading Boring Bar Iso Thread 2.00 Shank Left Hand 14.0 OAL

CARMEX SIL 2000 U33 Threading Boring Bar Iso Thread 2.00 Shank Left Hand 14.0 OAL

ANSI: *SIL 2000 U33

ISO: SIL 2000 U33

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: CAR30100244
Delivery date: 3-5 days
$335.40
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Int.Groove Threading, Int.Threading
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 2.0000 50.80MM
Neck Dia 2.0000
Tool Material Steel
Min Bore 2.5000
Insert Size Ic 33
Overall Len 14.0000 355.60MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Cutting & Machining Properties
Inter/Extern Internal
Insert Style U
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Fasteners & Connectors
Insert Screw S33
