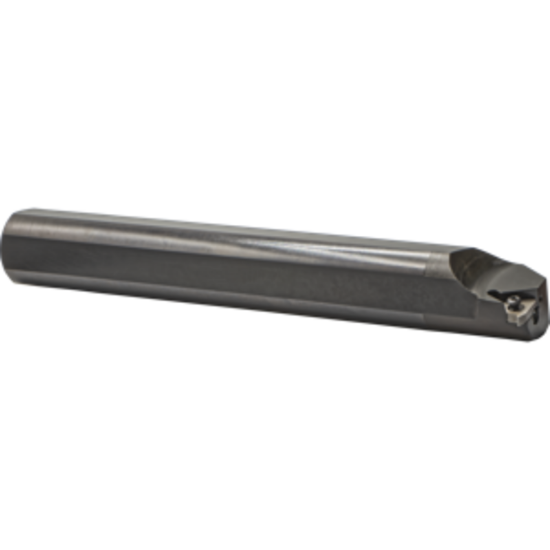

Picture of CARMEX SIL 2000 U27 Threading Boring Bar Iso Thread 2.00 Shank Left Hand 14.0 OAL

CARMEX SIL 2000 U27 Threading Boring Bar Iso Thread 2.00 Shank Left Hand 14.0 OAL

ANSI: SIL 2000 U27

ISO: SIL 2000 U27

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: CAR30100246
Delivery date: 3-5 days
$273.00
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Groove Threading, Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Overall Len 14.0000 355.60MM
Machine Side Connection Size 2.0000 50.80MM
Neck Dia 2.0000
Machine Side Connection Type Boring Bar
Min Bore 2.3000
Insert Size Ic 27
Tool Material Steel
Shank/Pilot Dia 2.0000 50.80MM - 2
Cutting & Machining Properties
Hand R/L Left
Insert Style ISO
Inter/Extern Internal
Seat/Nest AE27U
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Fasteners & Connectors
Insert Screw S27
Seat Screw A27
