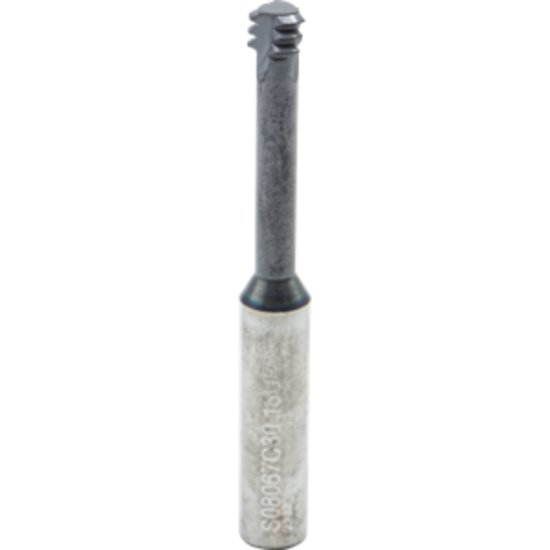

Picture of Carmex MTS08067C30 16 UN Thread Mill 16.00TPI 0.26 Dia 1.19 Neck 0.31 Shank Internal 3 Flute 3xD1 AlTiN

Carmex MTS08067C30 16 UN Thread Mill 16.00TPI 0.26 Dia 1.19 Neck 0.31 Shank Internal 3 Flute 3xD1 AlTiN

Part Number: CAR40300370

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: 1293954
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
CARMEX Carbide Thread Mill 16.00TPI 0.26 Dia 1.19 Neck 0.31 Shank Internal 3 Flute 3xD1 AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <50HRC, Stainless, High Temp, Iron
Coating ALTIN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Tool Dia 0.2640 6.71MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.7920 20.1MM
Grade MT7
Dia Deep 3.0x Dia
Thread Pitch 16.00TPI
Inter/Extern Internal
Neck Length 1.1900 30.23MM
