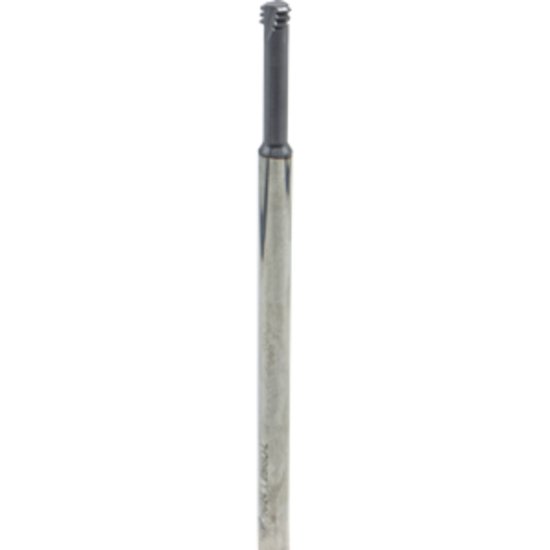

Picture of Carmex MTS0606C24 1.25 ISO-L Thread Mill M8 x 1.25mm 0.23 Dia 0.94 Neck 0.23 Shank Internal 3 Flute 3xD1 AlTiN

Carmex MTS0606C24 1.25 ISO-L Thread Mill M8 x 1.25mm 0.23 Dia 0.94 Neck 0.23 Shank Internal 3 Flute 3xD1 AlTiN

Part Number: CAR40300360
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1293882
Vendor: Sussex Tool and Supply
$162.40

Description

CARMEX Carbide Thread Mill M8 x 1.25MM 0.23 Dia 0.94 Neck 0.23 Shank Internal 3 Flute 3xD1 AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Thru Coolant
Type Of Tool Thread Mill
Thread Type METRIC
Inter/Extern Internal
Dimensions & Sizing
Overall Length 4.1000 104.14MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.2360 5.99MM
Length Of Cut 0.7080 17.9MM
Dia Deep 3.0x Dia
Thread Pitch 1.25MM
Neck Length 0.9400 23.88MM
Thread Size M8
Performance & Capacity
Cut Rating <50HRC, Stainless, High Temp, Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
Grade MT7
