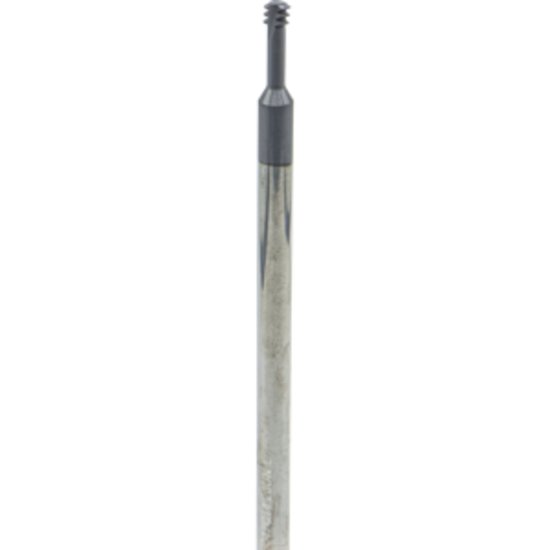

Picture of Carmex MTS06047C14 20 UN-L Thread Mill 0.18 Dia 20.00TPI 0.55 Neck 4.10 OAL 3 Flute 2xD1 Internal AlTiN

Carmex MTS06047C14 20 UN-L Thread Mill 0.18 Dia 20.00TPI 0.55 Neck 4.10 OAL 3 Flute 2xD1 Internal AlTiN

Part Number: CAR40300320
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1293944
Vendor: Sussex Tool and Supply
$162.40

Description

CARMEX Carbide Thread Mill 0.18 Dia 20.00TPI 0.55 Neck 4.10 OAL 3 Flute No Coolant 2xD1 Internal AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Inter/Extern Internal
Dimensions & Sizing
Overall Length 4.1000 104.14MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.1870 4.75MM
Length Of Cut 0.3740 9.49MM
Dia Deep 2.0x Dia
Thread Pitch 20.00TPI
Neck Length 0.5500 13.97MM
Performance & Capacity
Cut Rating <50HRC, Stainless, High Temp, Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
Grade MT7
