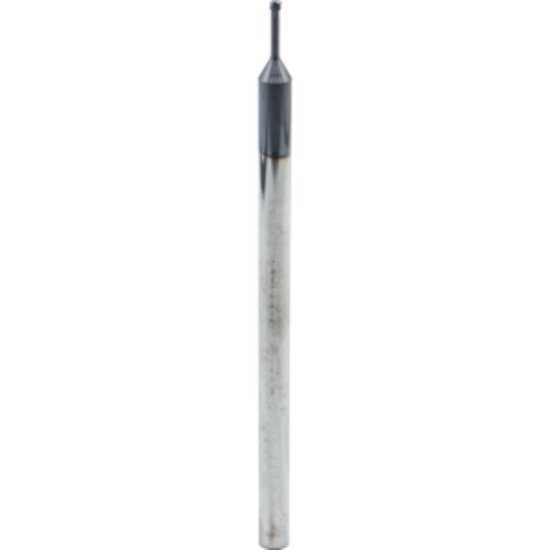

Picture of Carmex MTS06024C9 0.5 ISO-L Thread Mill 0.09 Dia 0.50mm 0.37 Neck 4.10 OAL 3 Flute Coolant 3xD1 Internal AlTiN

Carmex MTS06024C9 0.5 ISO-L Thread Mill 0.09 Dia 0.50mm 0.37 Neck 4.10 OAL 3 Flute Coolant 3xD1 Internal AlTiN

Part Number: CAR40300151

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: 1293856
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
CARMEX Carbide Thread Mill 0.09 Dia 0.50MM 0.37 Neck 4.10 OAL 3 Flute Yes Coolant 3xD1 Internal AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <50HRC, Stainless, High Temp, Iron
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 4.1000 104.14MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.0930 2.36MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.2790 7.08MM
Grade MT7
Dia Deep 3.0x Dia
Thread Pitch 0.50MM
Thread Type METRIC
Inter/Extern Internal
Neck Length 0.3700 9.40MM
Thread Size M3
