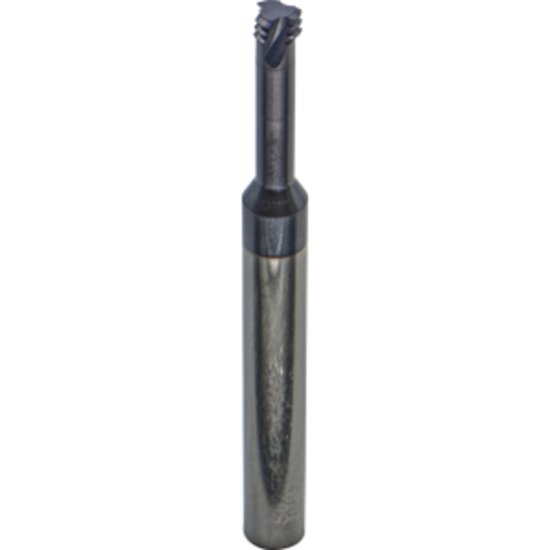

Picture of Carmex MTS0250C75 28 UN Thread Mill 0.19 Dia 28.00TPI 0.75 Neck 2.50 OAL 3 Flute 3xD1 Internal AlTiN

Carmex MTS0250C75 28 UN Thread Mill 0.19 Dia 28.00TPI 0.75 Neck 2.50 OAL 3 Flute 3xD1 Internal AlTiN

Part Number: CAR40300254

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: 1293937
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
CARMEX Carbide Thread Mill 0.19 Dia 28.00TPI 0.75 Neck 2.50 OAL 3 Flute No Coolant 3xD1 Internal AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <50HRC, Stainless, High Temp, Iron
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.1969 5.00MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.5907 15.0MM
Grade MT7
Dia Deep 3.0x Dia
Thread Pitch 28.00TPI
Inter/Extern Internal
Neck Length 0.7500 19.05MM
