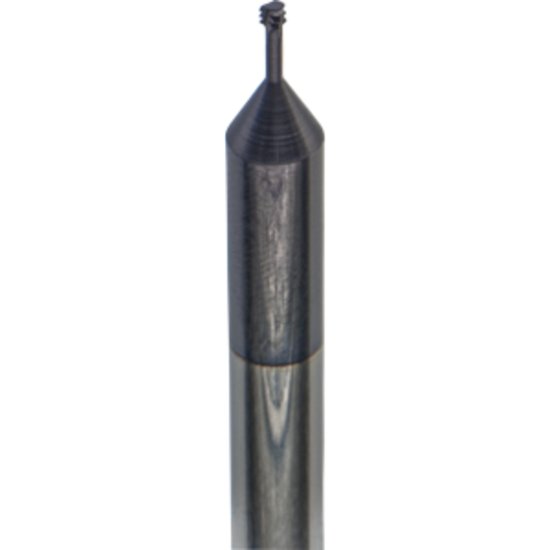

Picture of Carmex MTS0250C20 48 UN Thread Mill 48.00TPI 0.07 Dia 0.20 Neck 0.25 Shank Internal 3 Flute 2xD1 AlTiN

Carmex MTS0250C20 48 UN Thread Mill 48.00TPI 0.07 Dia 0.20 Neck 0.25 Shank Internal 3 Flute 2xD1 AlTiN

Part Number: CAR40300225
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1293906
Vendor: Sussex Tool and Supply
$154.47

Description

CARMEX Carbide Thread Mill 48.00TPI 0.07 Dia 0.20 Neck 0.25 Shank Internal 3 Flute 2xD1 AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Inter/Extern Internal
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.0750 1.91MM
Length Of Cut 0.1500 3.81MM
Dia Deep 2.0x Dia
Thread Pitch 48.00TPI
Neck Length 0.2000 5.08MM
Performance & Capacity
Cut Rating <50HRC, Stainless, High Temp, Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
Grade MT7
