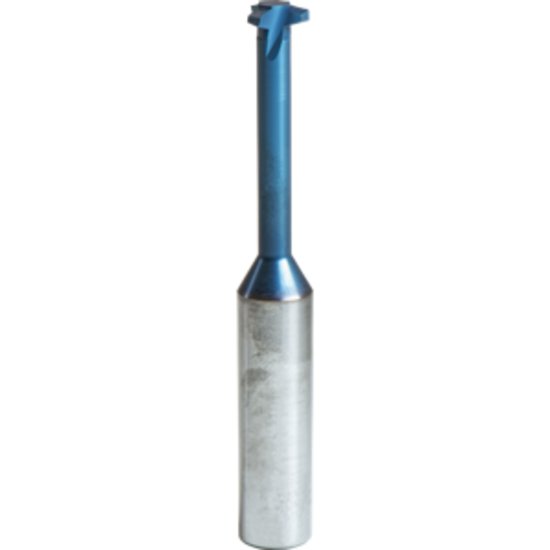

Picture of Carmex MTI10092C33 4 TR Thread Mill 4.00mm 0.36 Dia 1.30 Neck 0.39 Shank Internal 3 Flute AlTiN

Carmex MTI10092C33 4 TR Thread Mill 4.00mm 0.36 Dia 1.30 Neck 0.39 Shank Internal 3 Flute AlTiN

Part Number: CAR40300384

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: 1294028
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
CARMEX Carbide Thread Mill 4.00MM 0.36 Dia 1.30 Neck 0.39 Shank Internal 3 Flute AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <50HRC, Stainless, High Temp, Iron
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.9000 73.66MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 3
Tool Dia 0.3620 9.19MM
Type Of Tool Thread Mill
Performance Rating High Performance
Grade MT7
Thread Pitch 4.00MM
Inter/Extern Internal
Neck Length 1.3000 33.02MM
