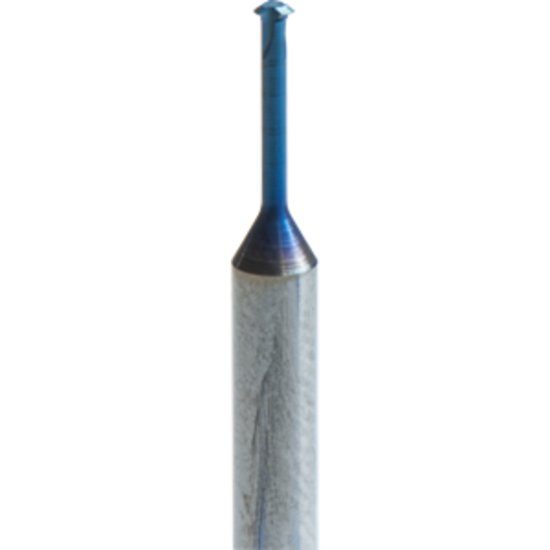

Picture of Carmex MTI03016C7 0.4 ISO Thread Mill M2 x 0.40mm 0.06 Dia 0.28 Neck 0.11 Shank Internal 3 Flute AlTiN

Carmex MTI03016C7 0.4 ISO Thread Mill M2 x 0.40mm 0.06 Dia 0.28 Neck 0.11 Shank Internal 3 Flute AlTiN

Part Number: CAR40300283

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: 1293892
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
CARMEX Carbide Thread Mill M2 x 0.40MM 0.06 Dia 0.28 Neck 0.11 Shank Internal 3 Flute AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <50HRC, Stainless, High Temp, Iron
Coating ALTIN
Mach Side Connection Size 0.1181 3.00MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 3
Tool Dia 0.0610 1.55MM
Type Of Tool Thread Mill
Performance Rating High Performance
Grade MT7
Thread Pitch 0.40MM
Thread Type METRIC
Inter/Extern Internal
Neck Length 0.2800 7.11MM
Thread Size M2
