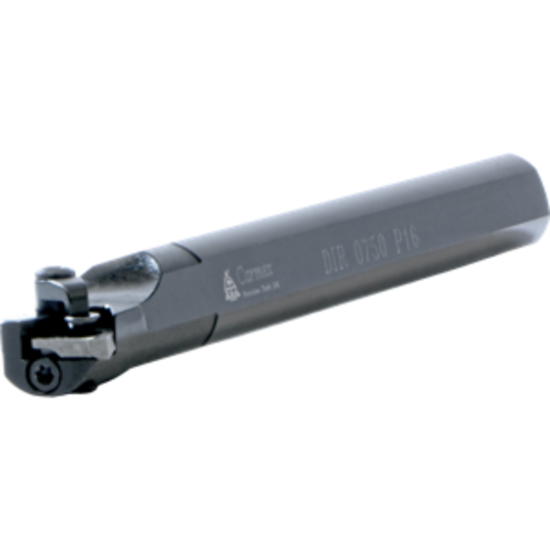

Picture of CARMEX DIR 0750 P16 Threading Boring Bar Iso Thread 0.75 Shank Right Hand 7.00 OAL Coolant

CARMEX DIR 0750 P16 Threading Boring Bar Iso Thread 0.75 Shank Right Hand 7.00 OAL Coolant

ANSI: DIR 0750 P16

ISO: DIR 0750 P16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: CAR30300011
Delivery date: 3-5 days
$130.00
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Threading, Int.Groove Threading
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Insert
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Overall Len 7.0000 177.80MM
Neck Dia 0.7500
Machine Side Connection Type Boring Bar
Min Bore 1.0000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style ISO
Hand R/L Right
Seat/Nest AI16
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp/Wedge C16
Insert Screw S16
Seat Screw A16S
