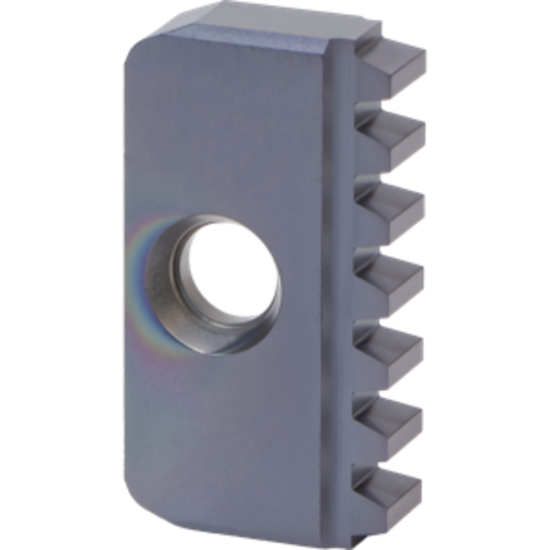

CARMEX 30 I 6 ACME MT7 Indexable Thread Mill Insert 6.00TPI TiAlN Coating 30 Size

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: CAR50600035
Delivery date: 3-5 days
$85.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Coating TiAlN Coating
Application Thread Milling
Shipping State Wisconsin
Made In USA No
Package Size 2
Performance Rating High Performance
Insert/Tool Insert
Grade MT7
Dimensional Specifications
Thread Pitch 6.00TPI
Length Of Cut 1.1811 30.00MM
Overall Len 1.1810 30.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Thread Form
Inter/Extern Internal
Industry-Specific Applications
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
