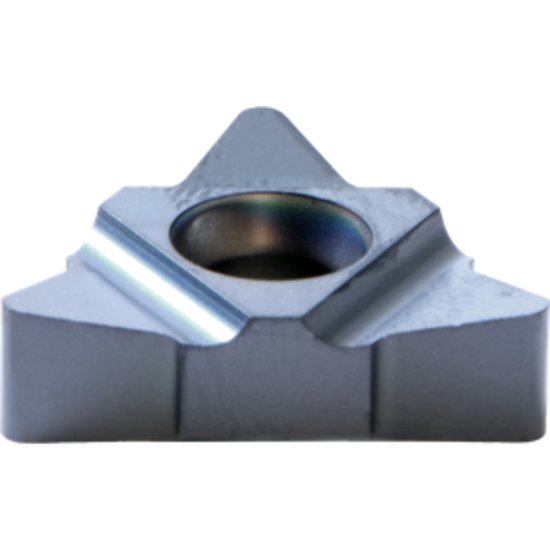

Picture of Carmex 27UEIRL275WBMA Threading Insert 2.75TPI Whitworth BSW/BSF/BSP Int / Ext Neutral TiAlN ISO 27

Carmex 27UEIRL275WBMA Threading Insert 2.75TPI Whitworth BSW/BSF/BSP Int / Ext Neutral TiAlN ISO 27

Part Number: CAR20600439 ISO: 27UEIRL275WBMA ANSI:27UEIRL275WBMA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: 1022840
Vendor: Sussex Tool and Supply
$37.00
This product has a minimum quantity of 10
CARMEX 20600439 Threading Insert 2.75TPI Whitworth BSW/BSF/BSP Int / Ext Neutral TiAlN ISO 27 PVD TiALN coated sub-micrograin grade for stainless steels and exotic materials, at medium to high cutting speeds
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TiAlN
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Grade BMA
Insert Type Positive
Insert Size Ic 27
Insert Fits ISO Thread
Hand Neutral
Thread Pitch 2.75TPI
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern Int / Ext
Full Or Partial Profile Full Profile
Threed Teeth 1
