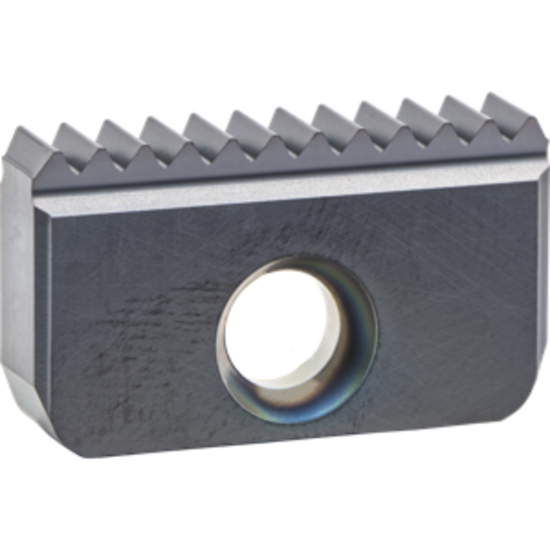

CARMEX 21 I 1.75 ISO MT7 Indexable Thread Mill Insert 1.75MM TiAlN Coating 21 Size

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: CAR50500049
Delivery date: 3-5 days
$52.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Shipping State Wisconsin
Made In USA No
Package Size 2
Coating TiAlN Coating
Performance Rating High Performance
Insert Application Finishing
Grade MT7
Insert/Tool Insert
Dimensional Specifications
Length Of Cut 0.8270 21.01MM
Overall Len 0.8270 21.01MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 1.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Thread Form
Cutting Edge Mat Carbide
Inter/Extern Internal
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
