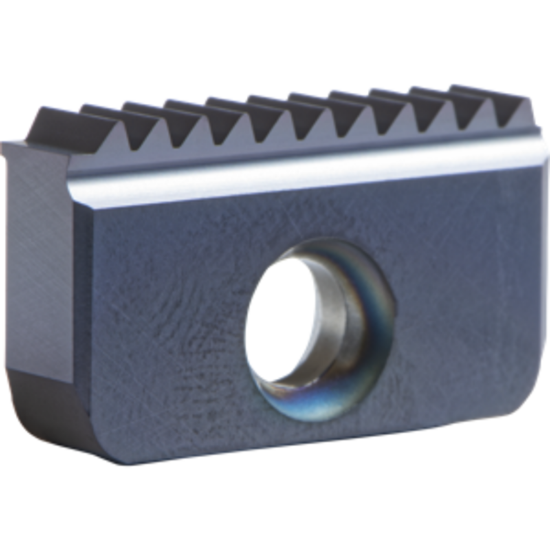

CARMEX 21 - 14 BSPT MT7 Indexable Thread Mill Insert 14.00TPI TiAlN Coating 21 Size

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: CAR50500071
Delivery date: 3-5 days
$58.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Shipping State Wisconsin
Package Size 2
Coating TiAlN Coating
Performance Rating High Performance
Made In USA No
Insert Application Finishing
Grade MT7
Insert/Tool Insert
Dimensional Specifications
Length Of Cut 0.8270 21.01MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 14.00TPI
Overall Len 0.8270 21.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Thread Form
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Energy Yes
Medical Yes
Aerospace Yes
