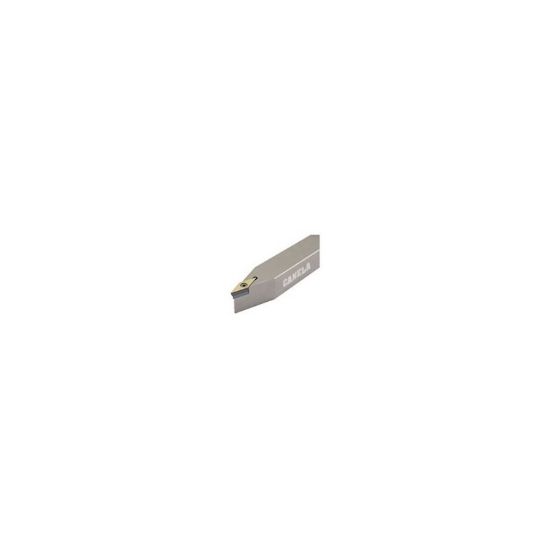

Picture of CANELA Tool SVVCN203D Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

CANELA Tool SVVCN203D Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

ANSI: SVVCN203D

ISO: SVVCN203D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANSVVCN203D
Delivery date: 3-5 days
$121.89

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Lead Angle 72.5°
Clearance Angle 70.0°
Overall Len 6.0000 152.40MM
Insert Size Ic 16 "33"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style VC
Seat/Nest 3718
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Fasteners & Connectors
Insert Screw 1335
Seat Screw 1750
