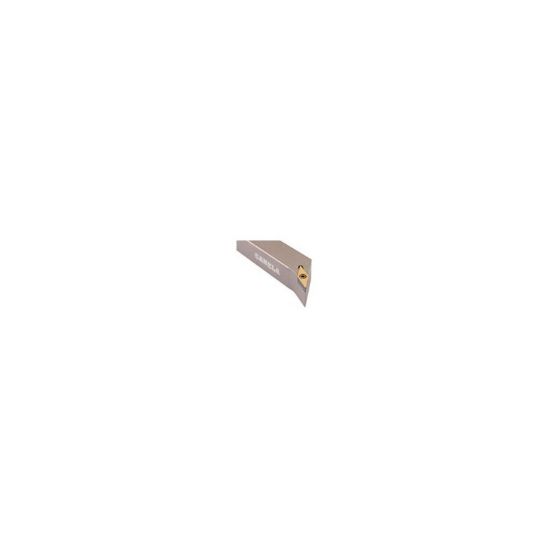

Picture of CANELA Tool SVHCL163D Turning Stick Tool 35.0° 1.000 Shank 6.00 OAL

CANELA Tool SVHCL163D Turning Stick Tool 35.0° 1.000 Shank 6.00 OAL

ANSI: SVHCL163D

ISO: SVHCL163D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANSVHCL163D
Delivery date: 3-5 days
$80.57

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Michigan
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 15.0°
Overall Len 6.0000 152.40MM
Lead Angle 107.5°
Cutting & Machining Properties
Insert Style VC
Seat/Nest 3718
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Fasteners & Connectors
Seat Screw 1750
Insert Screw 1335
