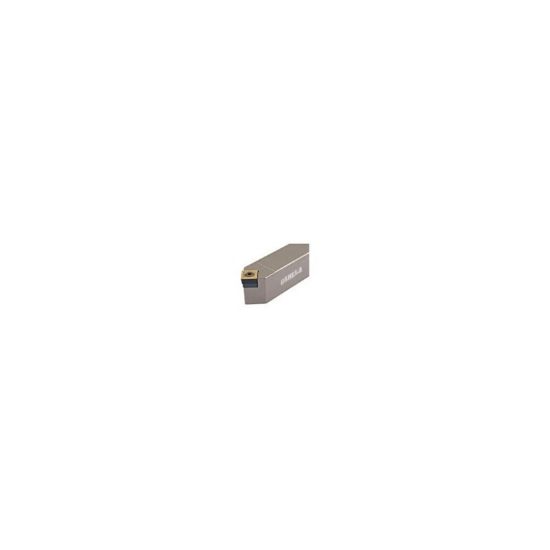

Picture of CANELA Tool SSDCN124B Turning Stick Tool Square 0.750 Shank 4.50 OAL

CANELA Tool SSDCN124B Turning Stick Tool Square 0.750 Shank 4.50 OAL

ANSI: SSDCN124B

ISO: SSDCN124B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANSSDCN124B
Delivery date: 3-5 days
$85.29

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Dimensional Specifications
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Lead Angle 45°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 3514
Inter/Extern External
Insert Style SC
Fasteners & Connectors
Insert Screw 1540
Seat Screw 1760
