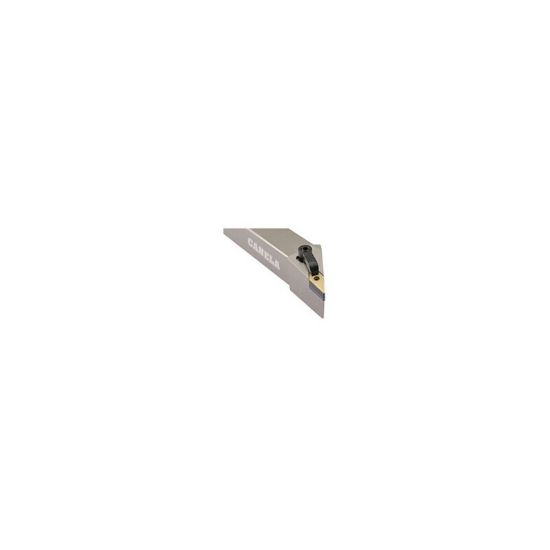

Picture of CANELA Tool MVJNL204D Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

CANELA Tool MVJNL204D Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

ANSI: MVJNL204D

ISO: MVJNL204D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMVJNL204D
Delivery date: 3-5 days
$137.66

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Application Ext.Turning
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 6.0000 152.40MM
Insert Size Ic 22 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Clearance Angle 50.0°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Lead Angle 93°
Cutting & Machining Properties
Insert Style VN
Seat/Nest IVSN-433
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Fasteners & Connectors
Seat Screw NL-46
Clamp/Wedge CL-30
Clamp Screw XNS-510
