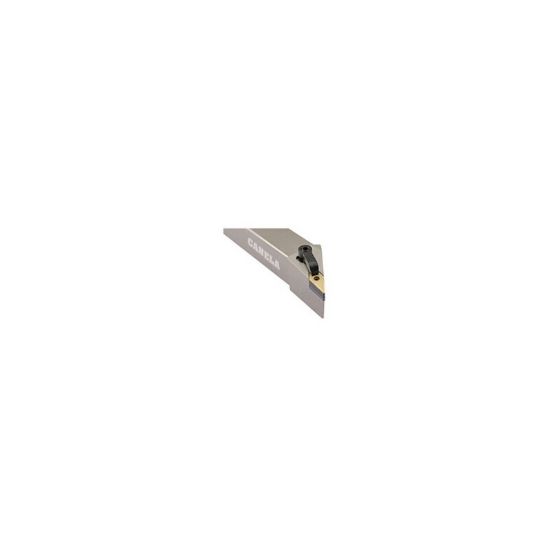

Picture of CANELA Tool MVJNL203D Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

CANELA Tool MVJNL203D Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

ANSI: MVJNL203D

ISO: MVJNL203D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMVJNL205D
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Insert/Tool Tool
Application Ext.Turning
Shipping State Michigan
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Lead Angle 93°
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Clearance Angle 50.0°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VN
Inter/Extern External
Fasteners & Connectors
Seat Screw NL-46
Clamp Screw XNS-510
Clamp/Wedge CL-30
