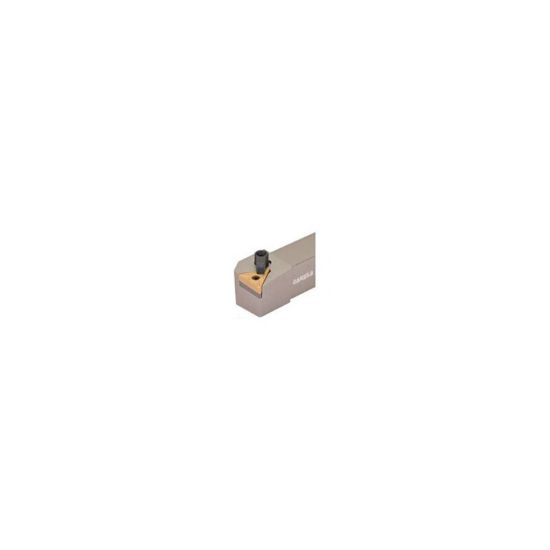

Picture of CANELA Tool MTFNR855D Turning Stick Tool Triangle 1.250 Shank 6.00 OAL

CANELA Tool MTFNR855D Turning Stick Tool Triangle 1.250 Shank 6.00 OAL

ANSI: MTFNR855D

ISO: MTFNR855D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTFNR855D
Delivery date: 3-5 days
$104.66

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Lead Angle 90° F
Insert Size Ic 27 "54"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest ITSN-533
Insert Style TN
Inter/Extern External
Fasteners & Connectors
Clamp/Wedge CL-12
Seat Screw NL-58
Clamp Screw XNS-510
