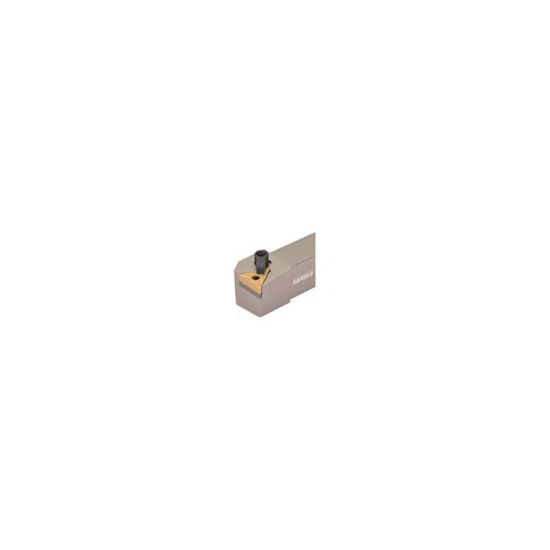

Picture of CANELA Tool MTFNR205D Turning Stick Tool Triangle 1.250 Shank 6.00 OAL

CANELA Tool MTFNR205D Turning Stick Tool Triangle 1.250 Shank 6.00 OAL

ANSI: MTFNR205D

ISO: MTFNR205D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTFNR205D
Delivery date: 3-5 days
$104.66

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 27 "54"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0000 152.40MM
Lead Angle 90° F
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style TN
Seat/Nest ITSN-533
Fasteners & Connectors
Clamp Screw XNS-510
Clamp/Wedge CL-12
Seat Screw NL-58
