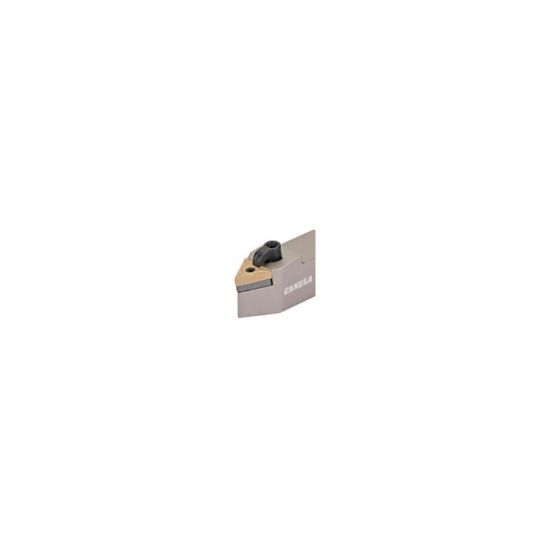

Picture of CANELA Tool MTENNS246E Turning Stick Tool Triangle 1.500 Shank 7.00 OAL

CANELA Tool MTENNS246E Turning Stick Tool Triangle 1.500 Shank 7.00 OAL

ANSI: MTENNS246E

ISO: MTENNS246E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTENNS246E
Delivery date: 3-5 days
$119.23

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert Type Negative
Made In USA No
Insert Application General Purpose
Dimensional Specifications
Clearance Angle 50.0°
Insert Size Ic 33 "66"
Lead Angle 60°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest ITSN-637
Inter/Extern External
Insert Style TN
Fasteners & Connectors
Seat Screw NL-68L
Clamp Screw XNS-510
Clamp/Wedge CL-12
