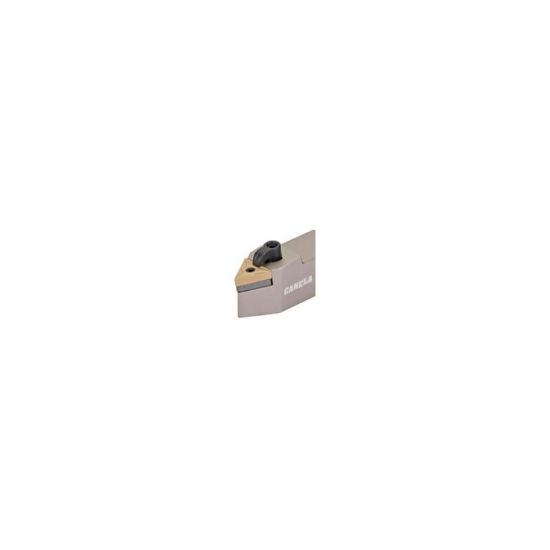

Picture of CANELA Tool MTENNS103B Turning Stick Tool Triangle 0.625 Shank 4.50 OAL

CANELA Tool MTENNS103B Turning Stick Tool Triangle 0.625 Shank 4.50 OAL

ANSI: MTENNS103B

ISO: MTENNS103B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTENNS103B
Delivery date: 3-5 days
$74.83

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Lead Angle 60°
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 4.5000 114.30MM
Clearance Angle 50.0°
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Seat/Nest ITSN-322
Fasteners & Connectors
Seat Screw NL-34L
Clamp/Wedge CL-20
Clamp Screw XNS-48
