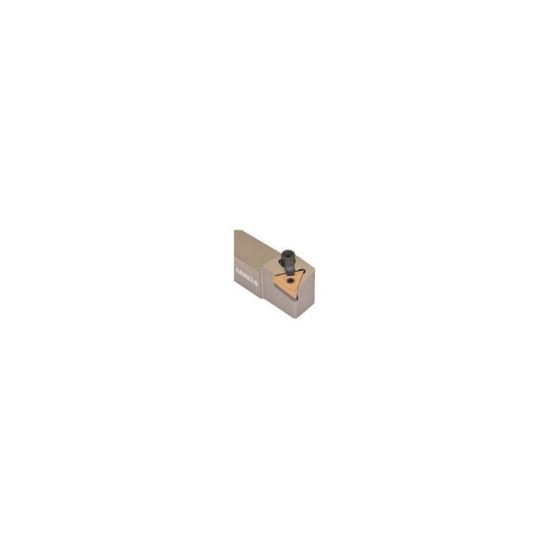

Picture of CANELA Tool MTANL245D Turning Stick Tool Triangle 1.500 Shank 6.00 OAL

CANELA Tool MTANL245D Turning Stick Tool Triangle 1.500 Shank 6.00 OAL

ANSI: MTANL245D

ISO: MTANL245D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTANL245D
Delivery date: 3-5 days
$119.23

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 27 "54"
Machine Side Connection Size 1.5000 38.10MM
Lead Angle 90°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Seat/Nest ITSN-533
Insert Style TN
Fasteners & Connectors
Clamp Screw XNS-510
Seat Screw NL-58
Clamp/Wedge CL-12
