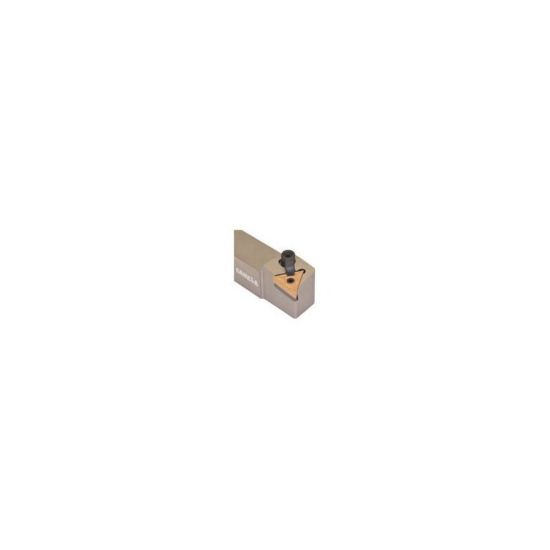

Picture of CANELA Tool MTANL163D Turning Stick Tool Triangle 1.000 Shank 6.00 OAL

CANELA Tool MTANL163D Turning Stick Tool Triangle 1.000 Shank 6.00 OAL

ANSI: MTANL163D

ISO: MTANL163D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTANL163D
Delivery date: 3-5 days
$79.54

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 90°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style TN
Seat/Nest ITSN-322
Fasteners & Connectors
Seat Screw NL-34L
Clamp/Wedge CL-20
Clamp Screw XNS-48
