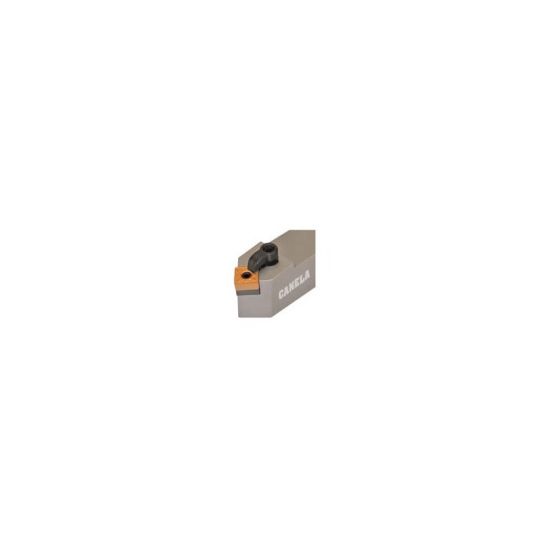

Picture of CANELA Tool MSDNN165D Turning Stick Tool Square 1.000 Shank 6.00 OAL

CANELA Tool MSDNN165D Turning Stick Tool Square 1.000 Shank 6.00 OAL

ANSI: MSDNN165D

ISO: MSDNN165D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMSDNN165D
Delivery date: 3-5 days
$95.23

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Michigan
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 45°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Insert Size Ic 16 "54"
Cutting & Machining Properties
Insert Style SN
Seat/Nest ISSN-533
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
Fasteners & Connectors
Seat Screw NL-58
Clamp/Wedge CL-12
Clamp Screw XNS-510
