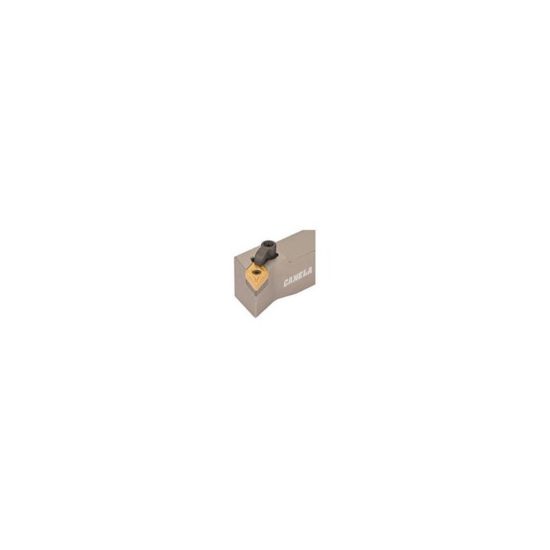

Picture of CANELA Tool MDQNR164D Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

CANELA Tool MDQNR164D Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

ANSI: MDQNR164D

ISO: MDQNR164D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDQNR164D
Delivery date: 3-5 days
$118.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Michigan
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Lead Angle 107.5°
Clearance Angle 16.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
Seat/Nest IDSN-432
Fasteners & Connectors
Clamp/Wedge CL-20
Clamp Screw XNS-48
Seat Screw NL-46
