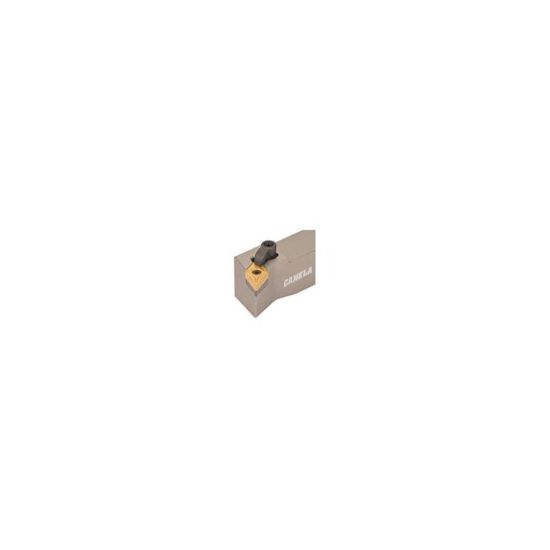

Picture of CANELA Tool MDQNR124B Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

CANELA Tool MDQNR124B Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

ANSI: MDQNR124B

ISO: MDQNR124B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDQNR124B
Delivery date: 3-5 days
$115.71

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Michigan
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12 "43"
Overall Len 4.5000 114.30MM
Lead Angle 107.5°
Clearance Angle 16.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Seat/Nest IDSN-432
Fasteners & Connectors
Clamp/Wedge CL-20
Clamp Screw XNS-48
Seat Screw NL-46
