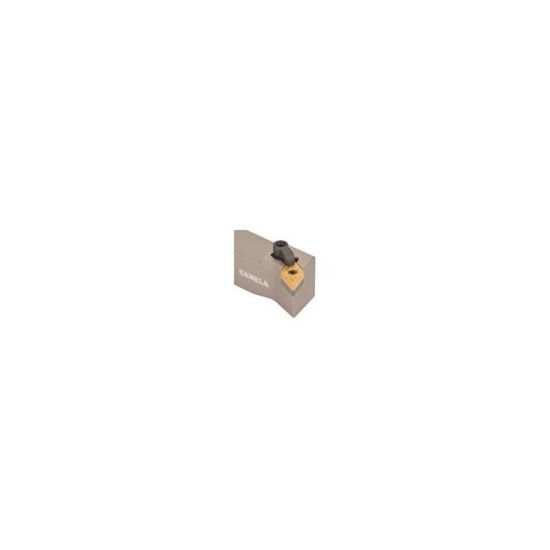

Picture of CANELA Tool MDQNL244E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

CANELA Tool MDQNL244E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

ANSI: MDQNL244E

ISO: MDQNL244E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDQNL244E
Delivery date: 3-5 days
$166.37

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Clearance Angle 16.0°
Overall Len 7.0000 177.80MM
Machine Side Connection Size 1.5000 38.10MM
Lead Angle 107.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 12 "43"
Cutting & Machining Properties
Seat/Nest IDSN-432
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Fasteners & Connectors
Seat Screw NL-46
Clamp/Wedge CL-20
Clamp Screw XNS-48
