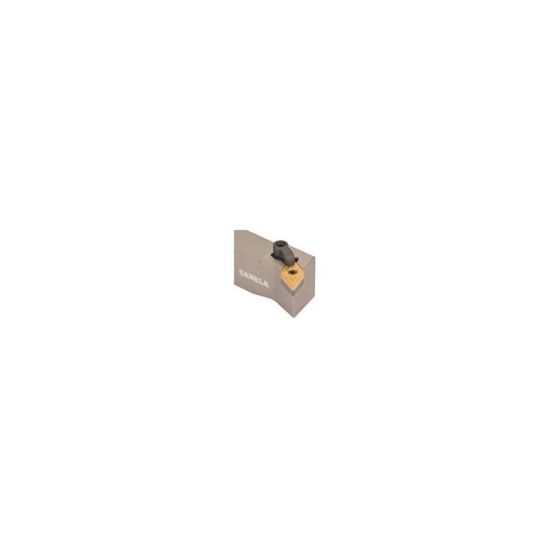

Picture of CANELA Tool MDQNL204D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

CANELA Tool MDQNL204D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

ANSI: MDQNL204D

ISO: MDQNL204D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDQNL204D
Delivery date: 3-5 days
$130.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Dimensional Specifications
Clearance Angle 16.0°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Lead Angle 107.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Inter/Extern External
Insert Style DN
Seat/Nest IDSN-432
Insert Shape/Cutter Pocket Shape 55.0°
Fasteners & Connectors
Seat Screw NL-46
Clamp/Wedge CL-20
Clamp Screw XNS-48
