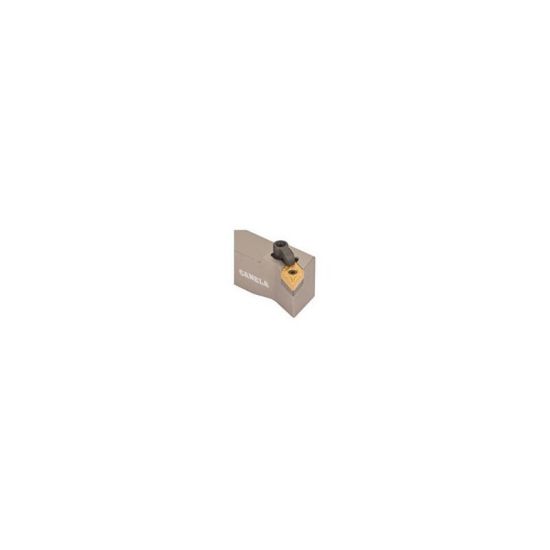

Picture of CANELA Tool MDQNL164D Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

CANELA Tool MDQNL164D Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

ANSI: MDQNL164D

ISO: MDQNL164D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDQNL164D
Delivery date: 3-5 days
$118.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Michigan
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 107.5°
Clearance Angle 16.0°
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style DN
Seat/Nest IDSN-432
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Fasteners & Connectors
Seat Screw NL-46
Clamp/Wedge CL-20
Clamp Screw XNS-48
