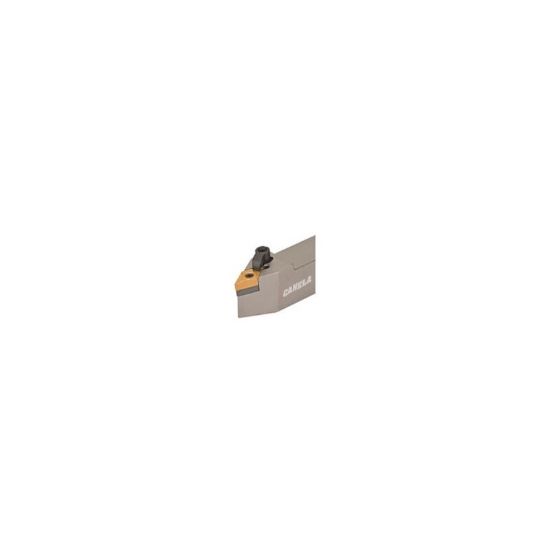

Picture of CANELA Tool MDPNN865D Turning Stick Tool 55.0° 1.500 Shank 6.00 OAL

CANELA Tool MDPNN865D Turning Stick Tool 55.0° 1.500 Shank 6.00 OAL

ANSI: MDPNN865D

ISO: MDPNN865D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDPNN865D
Delivery date: 3-5 days
$166.37

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Stick Tool
Clearance Angle 60.0°
Overall Len 6.0000 152.40MM
Lead Angle 62.5°
Insert Size Ic 19 "54"
Tool Material Steel
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Seat/Nest IDSN-533
Fasteners & Connectors
Seat Screw NL-58
Clamp Screw XNS-510
Clamp/Wedge CL-12
