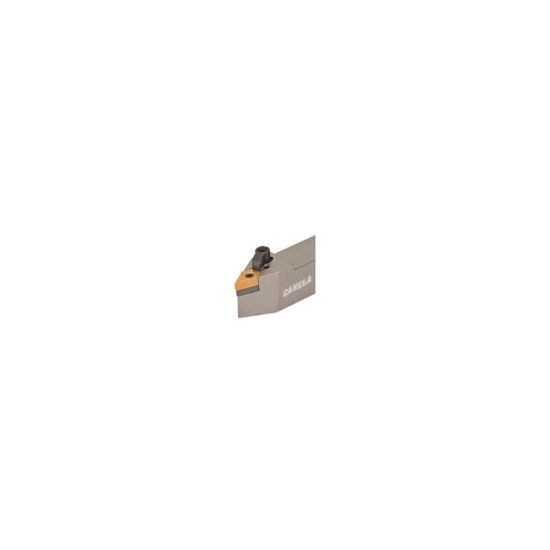

Picture of CANELA Tool MDPNN855D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

CANELA Tool MDPNN855D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

ANSI: MDPNN855D

ISO: MDPNN855D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDPNN855D
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Lead Angle 62.5°
Clearance Angle 60.0°
Overall Len 6.0000 152.40MM
Insert Size Ic 19 "54"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Seat/Nest IDSN-533
Inter/Extern External
Insert Style DN
Fasteners & Connectors
Clamp/Wedge CL-12
Clamp Screw XNS-510
Seat Screw NL-58
