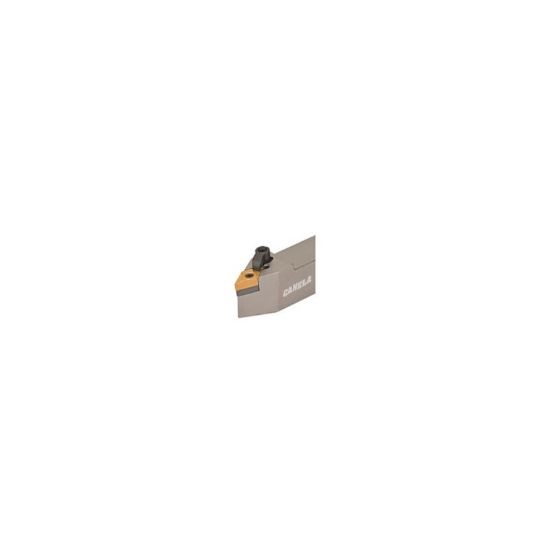

Picture of CANELA Tool MDPNN245E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

CANELA Tool MDPNN245E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

ANSI: MDPNN245E

ISO: MDPNN245E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDPNN245E
Delivery date: 3-5 days
$166.37

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 60.0°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Lead Angle 62.5°
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Insert Size Ic 19 "54"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Seat/Nest IDSN-533
Inter/Extern External
Insert Style DN
Fasteners & Connectors
Seat Screw NL-58
Clamp/Wedge CL-12
Clamp Screw XNS-510
