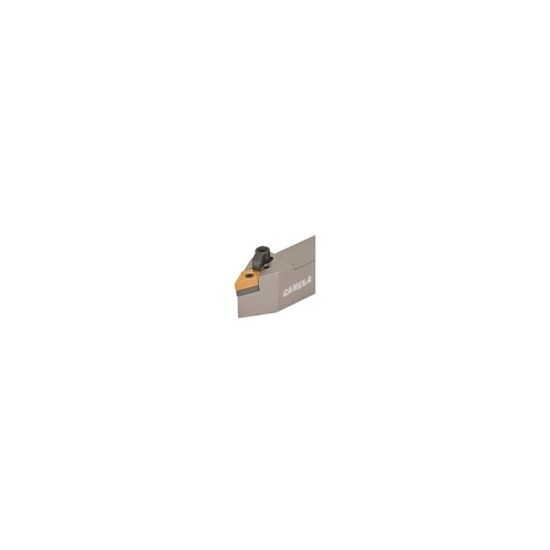

Picture of CANELA Tool MDPNN205D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

CANELA Tool MDPNN205D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

ANSI: MDPNN205D

ISO: MDPNN205D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDPNN205D
Delivery date: 3-5 days
$156.94

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Michigan
Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.2500 31.75MM
Lead Angle 62.5°
Clearance Angle 60.0°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 19 "54"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Seat/Nest IDSN-533
Fasteners & Connectors
Seat Screw NL-58
Clamp Screw XNS-510
Clamp/Wedge CL-12
