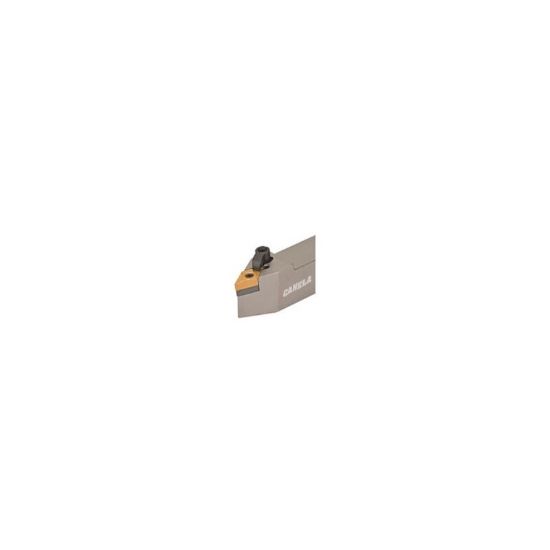

Picture of CANELA Tool MDPNN124B Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

CANELA Tool MDPNN124B Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

ANSI: MDPNN124B

ISO: MDPNN124B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDPNN124B
Delivery date: 3-5 days
$115.71

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 12 "43"
Clearance Angle 60.0°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 62.5°
Overall Len 4.5000 114.30MM
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Seat/Nest IDSN-432
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Fasteners & Connectors
Clamp/Wedge CL-22
Clamp Screw XNS-48
Seat Screw NL-46
