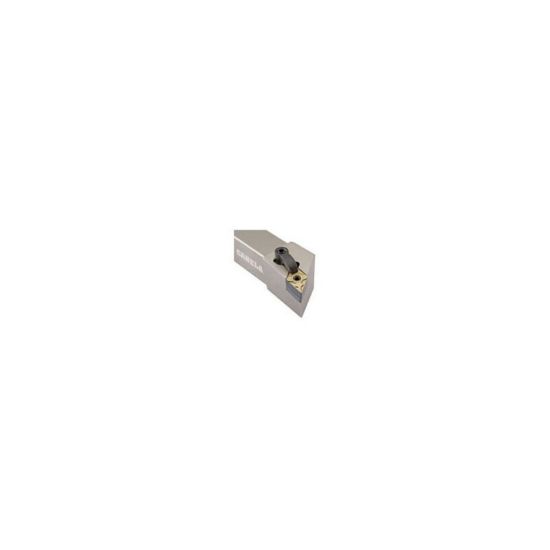

Picture of CANELA Tool MDJNL165D Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

CANELA Tool MDJNL165D Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

ANSI: MDJNL165D

ISO: MDJNL165D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDJNL165D
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 6.0000 152.40MM
Clearance Angle 27.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 93°
Insert Size Ic 19 "54"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Seat/Nest IDSN-533
Fasteners & Connectors
Seat Screw NL-58
Clamp Screw XNS-510
Clamp/Wedge CL-12
